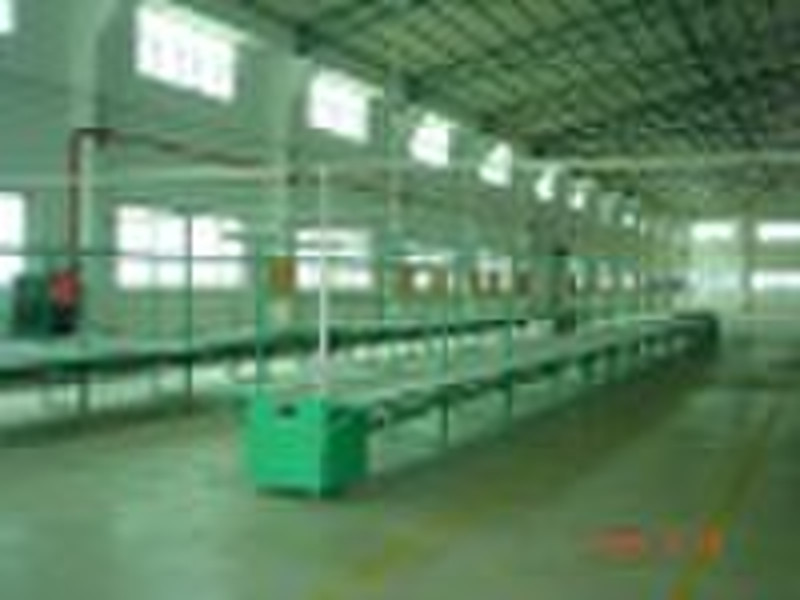

Face to Face PVC Belt Conveyer

Functional features: This equipment is applicable to various plants with flow production for small-medium size material conveying. The driving system adopts electromagnetic speed regulation system, which is stable, secure, convenient and quiet. Material Selection and RemarksPower: The motors use Hongling Brand 1.1KW motors manufactured by Jiangmen Motor Co., Ltd, Yashiba Brand 70 model 1:40 peed reducer made in Taiwan, Wuzhou Brand magnetic speed regulator with stepless speed regulation. Linear speed at 0-8M/min may be regulated freely. Machine body and stand: made of 50×40×1.5mm rectangle steel pipe by welding. Supports are made with Ø25mm galvanized roller, arranged with pitch of 25mm. The stand bars are equipped with galvanized adjustable cells. Machine head and tail are made of 1.2mm cold plate, and the machine body is 2m per section. Conveying belt: quality green lightweight conveying PVC belt imported from Holland, 2mm thick, 500mm wide, total 24m long, which is of seamless thermal shrinkage ring connection. Light stand and lighting: H-shape light stand, one per 2m, made of 40×20×1.5mm rectangle steel pipe, 1.26m high, with 2000×50×25×0.8mm coated traceway for connecting power. The 40W single daylight lamp tube stand is used, with one stand per 1.4m, arranged along both sides. Worktable: Long worktable of 12000×350×740mm, with 40×20×1.5mm rectangle steel pipe for support, 30L angle iron for underpin. Table board is made of 15mm quality plywood, affixed with blue fire-resistant board on surface and T-shape plastic edge, arranged along the machine body sides. Work Power: made of 2000×50×25×0.8mm galvanized traceway, set under the machine belt, with triphase and biphase sockets along two sides (1m/one socket). Operation card: Two operation card stands are set under the light stand, made of H-shape aluminum guide rail. At each work position is arranged a 300×400×1.5mm transparent glass. Gas pipe: A gas supply pipe is set in the middle of light stand, made of 4cm galvanized water pipe, with one tap and plug per 1m. Machine body color: Machine metal surface will be of fruit-green coating or (other colors are available as per request of customer).
